Nickel - Body - Katamari



How do you make an awesome robot body? You start with cardboard. No, seriously. The final body is made out of hardboard, (which is like a thin masonite) but I started by making a cardboard mock-up so I could make sure it fit perfectly without wasting time, money and materials.

(Side note: I am totally running out of finished pictures of this costume, hence the recycled images. :P)


The main concern here was getting it to fit as tight as possible, so that the profile could be as slim as possible, while still keeping in mind that I had to have room for all the circuitry and batteries to fit in behind the front panel. I guesstimated some arm holes.


I ended up with these two pieces which would make up the body.


Once I was happy with my mock-up, I set about replicating it in hardboard. I had to keep in mind the difference in material thickness and alter some of my measurements with that in mind.

 I got my pieces cut at home depot to start because my table saw is just a little bit busted, but several of them were the wrong size, or cut badly. >:/  I ended up having to recut those ones.

Then I traced my arm and neck holes onto the pieces, and cut them out with a jigsaw.

 Then I cut the hole out of the front for the control panel by drilling holes in the corners so I could get the jigsaw in and cut the rectangle.

Once those pieces were prepped, I cut the supports that would go in the corners and would act as a frame to hold it together.



 The problem with using hardboard is that although the super-thin-ness is an asset, it also means that there is essentially no material to nail into. In order to make it work you have to add blocks into the corner to support the structure so it doesn't fall apart.

Now I needed some help from a friend with more shop expertise, the rest of the build was a two man job. :P Special thanks to Ian for making this happen! :D

Those blocks were first applied with wood glue and then brad nailed into place. The brad nails helped to suck the two pieces of wood together and the glue help to make the bond even stronger.


I repeated this process on all 4 corners.


Fits like a glove! Which it should if you made a mock-up first! Hahaha

The top panels were added in a similar fashion. Same with the insert for the control panel. You can see below the inside with all the supports in the corners.


This side of the insert had to be made a little differently. This is the side where the hinge was going for the door on the front. I order to attach that, I needed to have the space at the back free, which meant I couldn't put a corner block. Instead, we put two beams with copious amounts of wood glue to hold that panel in place so I could still drill in and attach my nuts and bolts.

Once that was done I spackled and sanded all the little holes left by the brad nailer so the surface would be smooth after painting.

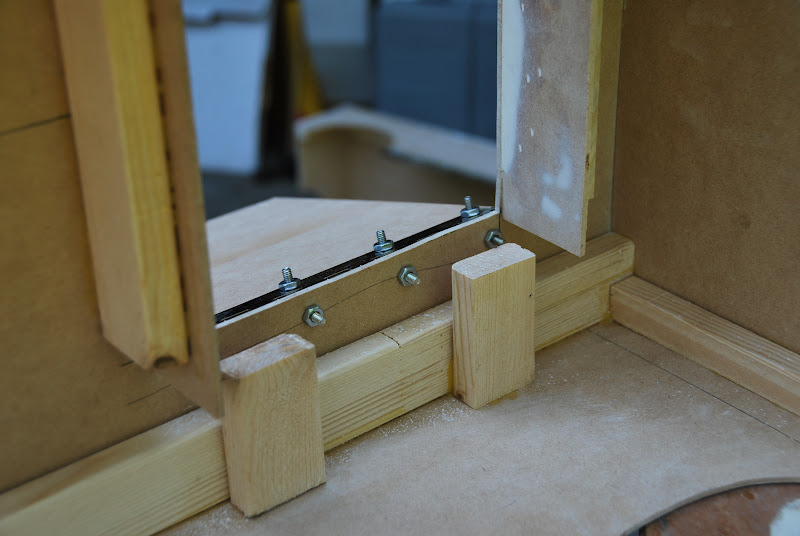

Then I measured and drilled the holes for the bolts so I could attach the hinges. The problem with the hinge on the front panel is that I couldn;t find bolts short enough, so there was a fair sized stub left over on the inside. Luckily, I was able to work it so that the bolts swung inside the insert so that the door would close properly.

Then I attached the side hinge.By having a hinge in the side it meant I could make this box as tight as possible without having to worry about not being able to get it over my head.



Now the base of my body was done.


...Just as soon as I glued in the final piece. XD

Then we set up the pieces to get the full spray treatment. Which is: primer, paint, paint, paint, paint, etc.

Then I prepped the control panel to move into its new home. More on that piece in a later post.

The quick solution to closing the box was velcro, as I was unable to find tiny clasps at home depot. these were just glued to a couple panels that overlapped the openings.

Once the base grey was done, the masking was put on and the details were added in and acrylic paint.

The final touch was the nuts that were added as detailing, and the control panel.

The extra final touch that you can't see, but made all the difference in the world to me was the foam layer that I put on the inside above the shoulders so I didn't die. XD

Friday, June 15, 2012

Nickel - Pants & Shirt - Katamari

Alright here's a look at how I mad my shirt and pants for Nickel. Let's start with the shirt.


So I started by patterning the top off of a t-shirt, but I decided I wanted it to be more fitted so I added in seams at the front. I made the back in 2 pieces so I could put a zipper in, same as all the other Katamari costumes.

I sewed the front pieces together, then the back. Then I attached the front and back together at the shoulders and sides.
Yay! Then I put the zipper in the back so I could actually try it on. Not a bad fit. It just needed a little taken out around the arm hole. I didn't have enough fabric to make a full shirt, nor did I want to. The idea was that I would wear a tanktop underneath so that when I was hanging out in the green room I would be boiling.




Then I started to make the fitted sleeves. I took all the measurements and created a sleeve pattern with 1 seam at the bottom. This I then had to translate into a 2 piece sleeve pattern with 2 side seams so I could add in the thumbhole. This was so the sleeves would stay tucked inside the claws without riding up.



I sewed the sleeve parts together. Then I finished all my inner seams for the shirt.


Then I attached the first sleeve, and checked the fit. These kinds of sleeves are harder to put in because you have to attach a circle to a circle. Which means the circumference has to be perfect otherwise it won't fit. :/

Yay! So many pins! And look, somehow the seams on the front of the sleeve and the top matched up perfectly... not planned at all.



1 sleeve, 2 sleeves! :D

Then I measured where the thumb hole should be and picked that part of the seam. I finished the edges and tacked them back.

Then I attached the collar.
Dome fasteners added. And the shirt was done! :D

Now let's talk about the pants. This is only my second time making pants so there was a lot of guess work to be done here. I wanted to make pants with a seam up the front of the legs, but not in a million pieces, so to do that I had to make one piece a 1/4 of the width and one piece 3/4. Even then they still didn't line up quite right... >:/


I cut out the pieces and sewed up the front seam, then the side seams. Then I put one leg inside the other and sewed them together.

Pants! :D Except that somehow I made them too big... >:/  So I took them in a lot from here. Then I added a waistband and a zipper. Once they were hemmed, they were nearly done.

I sprayed some extra hex nuts grey and had a friend hand stitch them on up the front seams of each leg. The added detail helped bring the whole costume together. ;D
I love this picture! Thanks to whoever the heck took it, as I totally just borrowed this off facebook. :P
